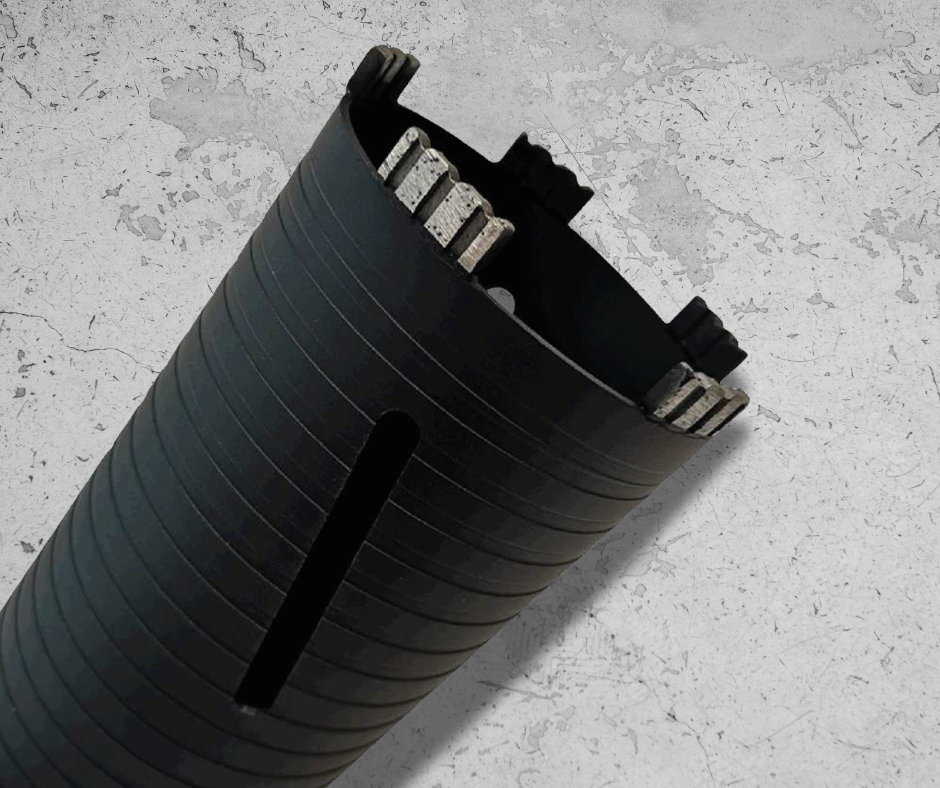

Diamond drill bit RPM: How many RPMs should you really use when drilling?

When talking about RPM diamond drill bits , the question is always the same:
How many revolutions should a diamond drill bit operate at to drill well without damaging it?

The answer, however, isn't a fixed number. In fact, the correct RPM depends on:

• diameter of the drill bit

• material (concrete or reinforced concrete)

• peripheral speed (m/s) of the segment

Therefore, if you change diameter or material, the RPM must also change.

What is the correct peripheral speed for diamond drill bits?

For this article we use these operating specifications:

• Cement → 2.0–3.0 m/s

• Reinforced concrete → 1.2–1.8 m/s

Therefore, on reinforced concrete, you work at a lower peripheral speed. This allows for better control:

• segment wear

• temperature

• drilling stability

Formula to calculate the RPM of a diamond drill bit

The formula is:

$$RPM=\frac{V\cdot 60}{\pi \cdot D}RPM\; =\; \backslash frac\{V\; \backslash cdot\; 60\}\{\backslash pi\; \backslash cdot\; D\}$$

Where:

• • V = peripheral speed in m/s

  • D = diameter of the drill bit in meters (e.g. Ø82 mm = 0.082 m)

Practical examples (corrected with your speeds)

Example 1 — Drill bit Ø82 mm

• Reinforced concrete (1.2–1.8 m/s) → 280–420 RPM

• Concrete (2.0–3.0 m/s) → 470–700 RPM

👉 So, if you're coring reinforced concrete with Ø82 and you're at 1,500 RPM, you're off the scale: the drill bit risks overheating and wearing out badly.

Example 2 — Drill bit Ø200 mm

• Reinforced concrete (1.2–1.8 m/s) → 115–170 RPM

• Concrete (2.0–3.0 m/s) → 190–290 RPM

👉 Here you can see it clearly: increasing the diameter significantly decreases the RPM. Consequently, working "by feel" almost always leads to errors.

Common Diamond Drill Bit RPM Mistakes

Many problems in coring arise when:

• using too high RPMs → heat increases and the segment may wear badly

• using too low RPMs → the drill bit vibrates, bites badly, irregular hole

• diameter is ignored → same setting on Ø52 and Ø200 (guaranteed error)

Furthermore, if the material is abrasive or the water is insufficient, the "theoretical" numbers must be adjusted. However, starting with the correct range will prevent 90% of disasters.

Conclusion

The RPM of diamond drill bits are not chosen "randomly": they depend on diameter + material + peripheral speed .

So:

• on concrete you work higher (2.0–3.0 m/s)

• on reinforced concrete work lower (1.2–1.8 m/s)

In the next article we will publish the complete RPM drill table (Ø32–Ø300) with an even more extensive structure and ready to print.
